After the brackets had been riveted on, the aileron gap fairing had to be installed.

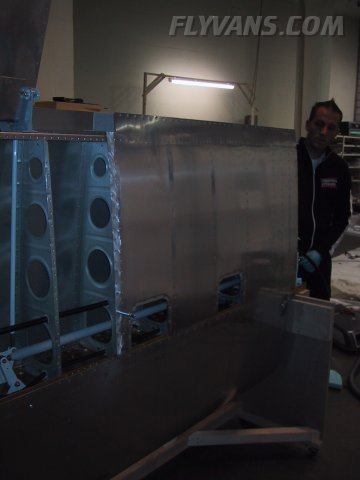

And a picture with the wing ready to take on the aileron...

We could have worked the right wing to the same stage but we decided to complete the aileron install on the left wing first, before working the right wing to this stage.

The QB Ailerons are basically complete, only the brackets have to be installed. Although only a few holes, these have to be taken slowly... Due to the confined space, an angle drill kit or a very long #12 drill will be required. Also, before starting on the aileron itself, make sure you drill out all holes in the steel brackets on a drill press to their respective sizes. Otherwise it will be a major PITA if not impossible to install the AN3-bolts.

Things are starting to get serious... It's no longer dozens of rivets but a mere 3 bolts that attach safety critical items.

We have no picture of it, but there will be spacers required on the aileron installation bolts. Make sure you produce them to fit and not just according dimnsions on the plans. But in general the callout for washers etc... in the plans worked quite well.

To adjust the length of the aileron pushrod, the aileron has to be aligned with the wing.

This is done by aligning the tooling holes on the ribs.

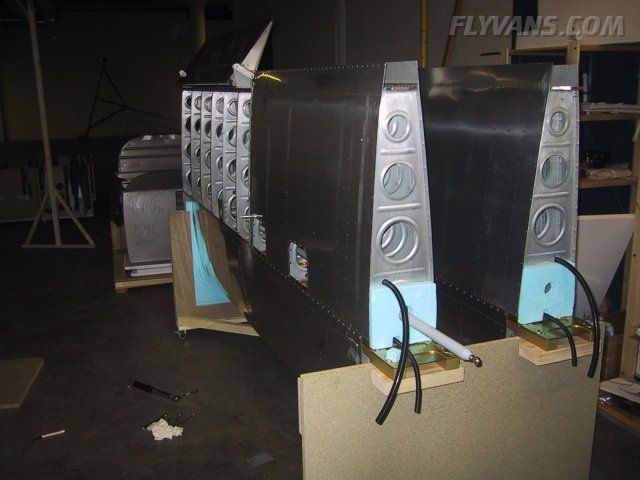

So the first pushrod from the aileron to the belcrank had the perfect length. Then the larger pushrod connecting the belcrank to the stick assembly in the fuse was installed. To keep it from scraping on the inside of the ribs, we made a temporary support out of styrofoam.

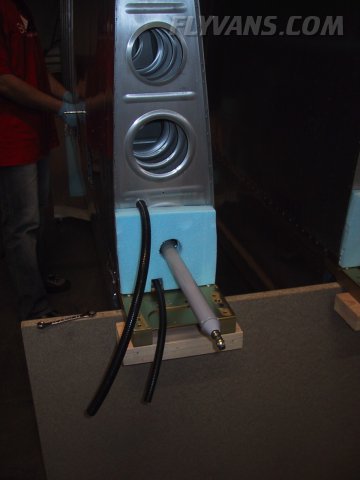

By cutting it slightly oversize it locks itself in place.

And with the pushrod installed, one can simulate an aileron roll *G*

The belcrank assembly converts sideways motion into aileron up/downtravel.

Another picture with the aileron in full down position.

Now the same job waits on the second wing...



While the left wing sits&waits for the next step. Most probably running wires and installing the pitot / AOA lines.
