Last Friday, we celebrated a major milestone :-)

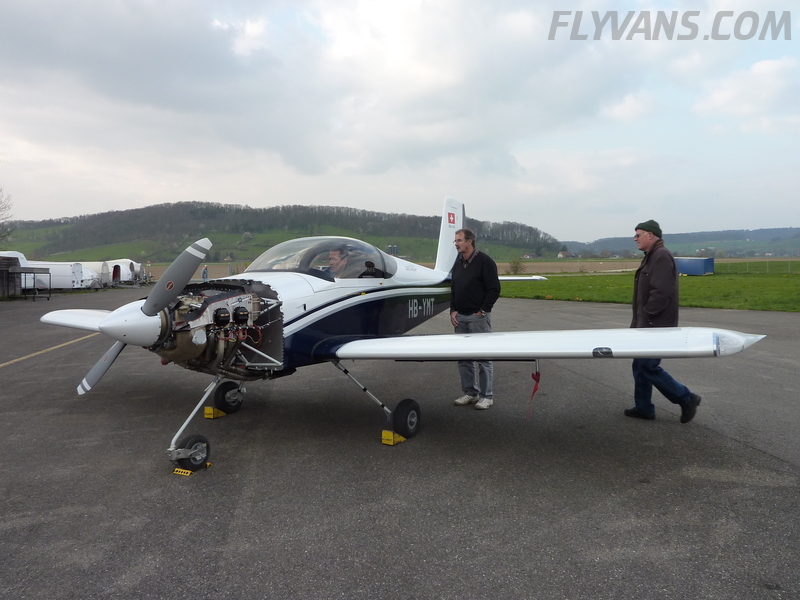

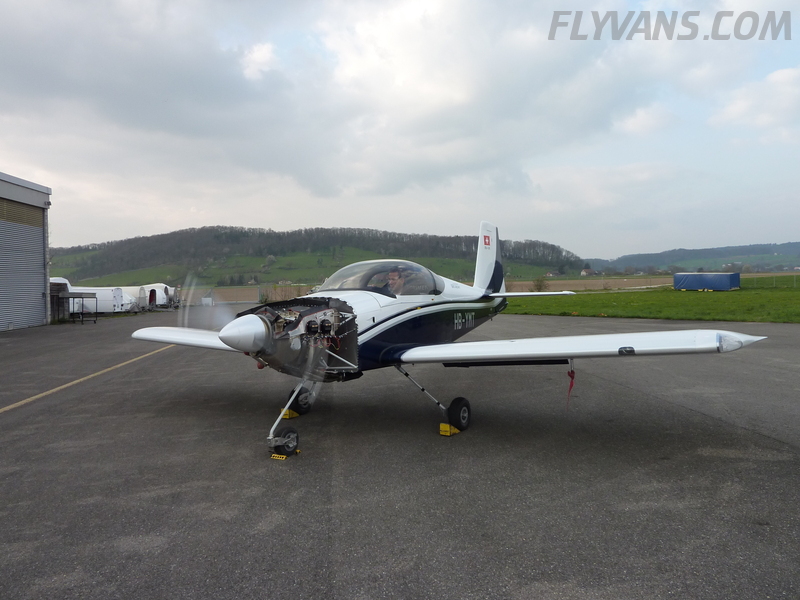

The engine ran successfully for the first time on the airplane!
The start went very well, which I credit to the ECI Fuel Injection and the P-Mag ignition.
As always there were minor snags we had to debug. First, the alternator wasn’t charging. Turns out there are 2 different wiring schemes for the exact same alternator/plug style and castelo inflavel by some very straightforward logic, for the alternator field to power, you have to wire a red power wire to a green one ;-) Obvious, yeah right…
And the second problem was that initially, the engine was only running on the electronic ignition and didn’t ignite on the traditional mag circuit. Turns out that we had reinstalled the mag on the wrong cycle, even though the timing marks were basically correct after we took it down to perfrom the service bulletin on the brushes. Anyway, it’s now all sorted out and we’re totally stoked :-)
